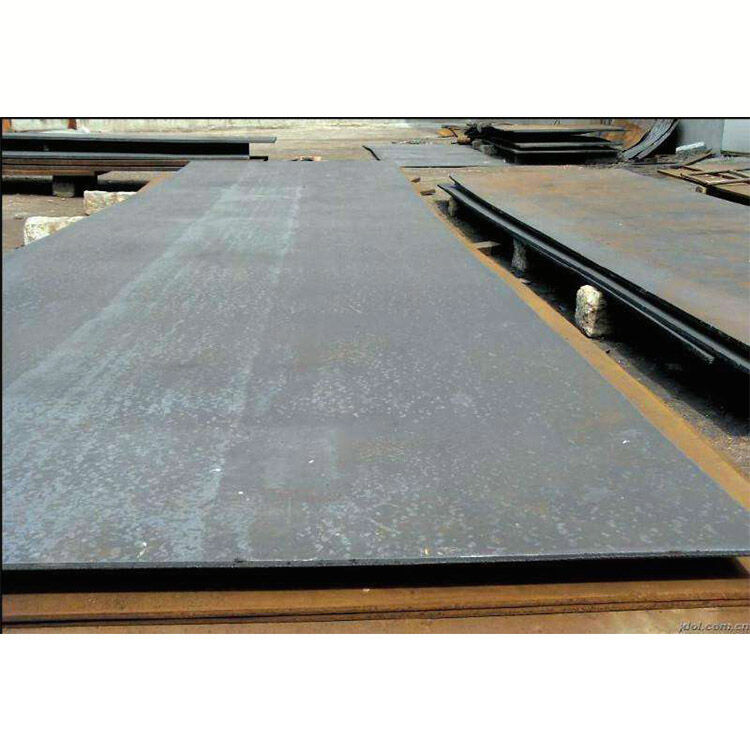

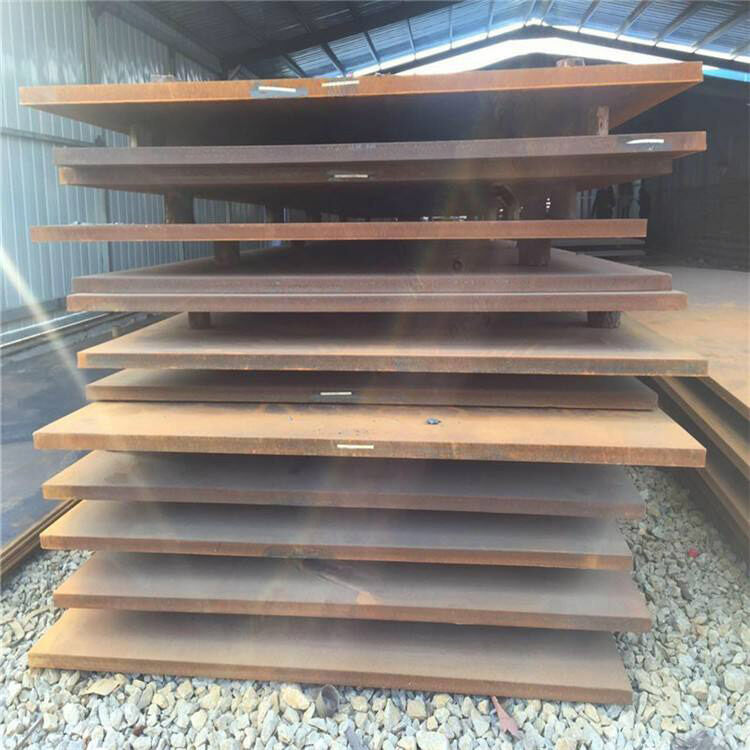

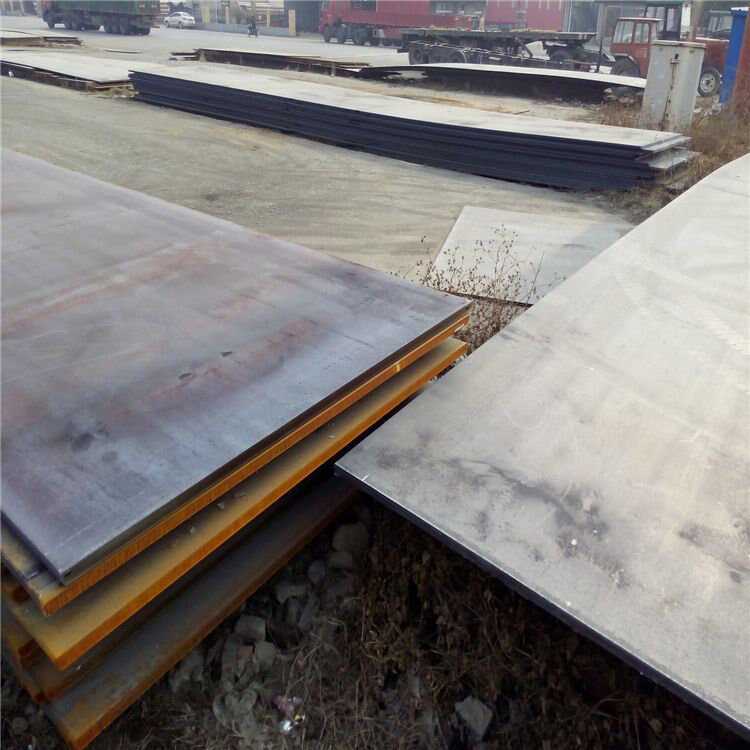

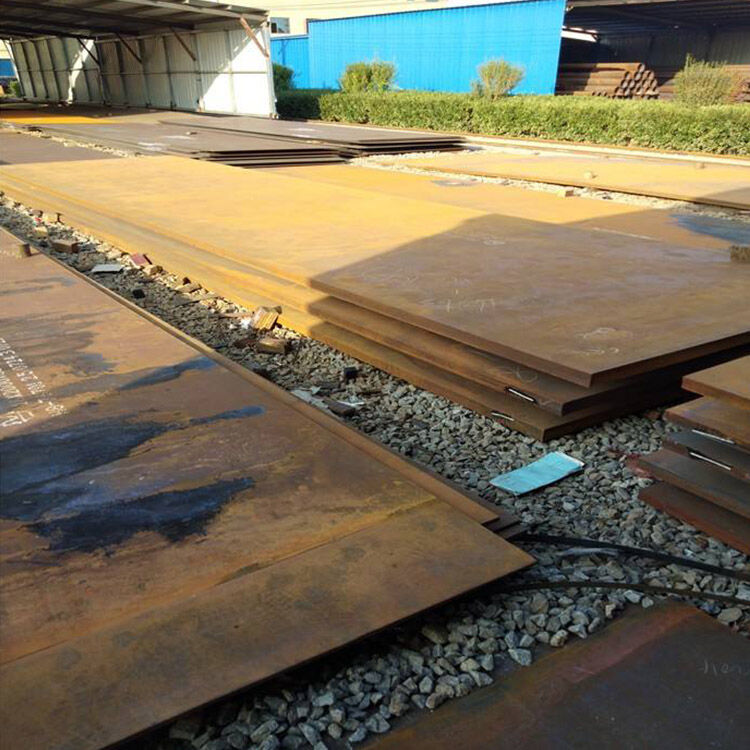

NM360 Wear resistant plate
Delivery Time:7 Days
Payment Term: T/T, L/C, WeChat pay, Alipay, etc
Size: Customizable
Transportation: By sea or land transportation

Connect with a wear resistant plate specialist—Junlicheng
Add to Basket


High Quality Wear plate Traders and Exporters in China

Abrasion resistant steel is used in areas where there is likely to be a high degree of abrasion or wear of the steel plate. Typical applications are in truck beds, attachments to diggers and earth movers and in processing applications in the mining industry.

The key quality for wear resistant steels is their hardness. We sell wear plate according to its hardness measured on the Brinnell Hardness Test- usually in 400HB grades.

400 HB steel is over 3 times harder than mild steel(120HB), but only a third as hard as stainless steel (150HB). Example uses are for construction machinery, skips, bulldozers and excavators, buckets and conveyors.

Steels with a hig HB rating (Briness Hardness) are intended for applications where wear or abrasion resistance is important. The benefit of using an abrasion resistant steel is that the plant, machinery or constructions working life can be extended considerably. This can significantly improve the reliability, durability and safety of structures and equipment. It also helps to reduce the maintenance costs associated with wear and breakdown of plant.

Product Specification

Material Grade360/ 400 / 450 / 500
Thickness2-3 mm
Size2000 X 6000
Country of OriginMade in China

400HB And 500HB Wear Resistant Steel Plate Ex-Stock

Wear resistant grades available




MTC to EN 10204 3.1 (and 3.1B to EN10204:1991 in some cases)

 Thickness up to 150 mm

 Widths 200 mm, 2500 mm and 3000 mm

 Lengths 6 and 12m

Because there are no standards for wear resistant steel plate – the focus is on the plate hardness – equivalent grades aren’t appropriate. However there are a number of different terms used

 AR steel Plate

 Wear resistant plate

 Abrasion resistant plate

 Hardox wear plate

Abrasion Resistant Steel Plate Hardness Range And Thikness

GradeProductThicknessHardness Range
500 ARCut Lengths4.0 - 5.5450 - 540
500 ARHeavy Plates5 - 60450 - 540
400 ARCut Lengths2.5 - 6.4360 - 420
400 ARHeavy Plates5 - 15360 - 420
400 ARHeavy Plates15 - 30360 - 450
400 ARHeavy Plates30 - 60360 - 480
450 ARCut Lengths3.0 - 6.4420 - 500
450 ARHeavy Plates6 - 60420 - 500

Mechanical Properties Of Abrasion Resistant Steel Plate

TypeGradesDesig-nationThick-ness (mm)Brinell Hardness (HBW)Mechanical Properties
Yield Strength (N/mm2)Tensile Strength (N/mm2)Bend Radius (t:thickn-ess)AngleResultTempera-ture ()Absored Energy (j)
Standard TypeABREX40025414, 417, 416107513223t
No Cracking073
ABREX45025458, 453, 459119214693t
No Cracking057
ABREX50025513, 509, 520137315523t
No Cracking043
ABREX60025611, 606, 60115682058---013

Typical Applications Of Abrasion Resistant Steel Plate

 Mining industry machinery

o  Earth moving machinery

o  Heavy wear platforms

o  Industrial hoppers, funnels and feeders
