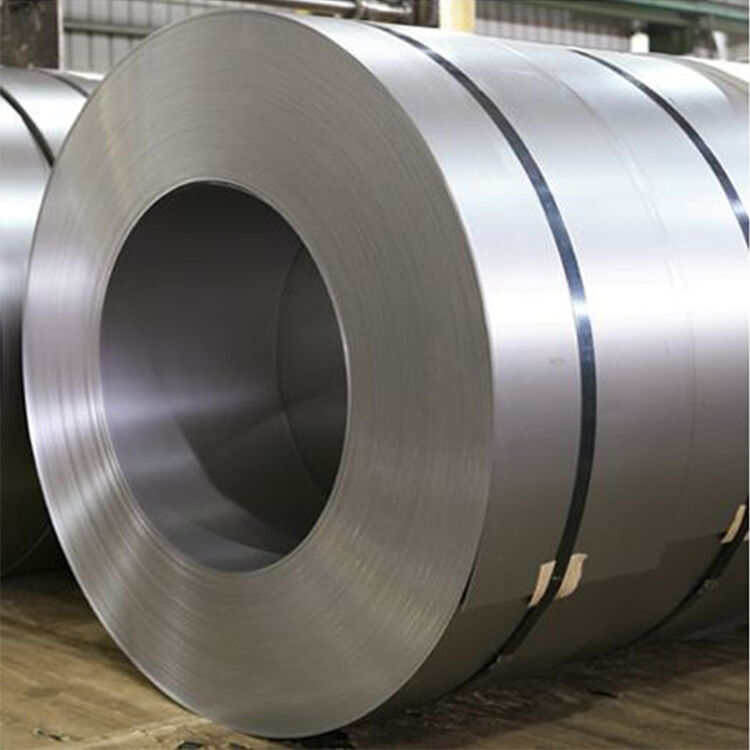

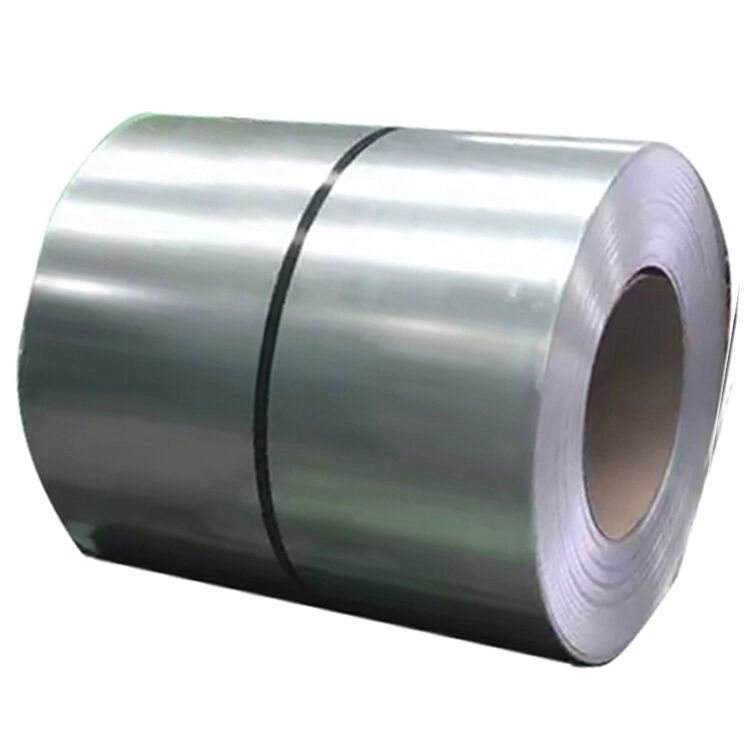

Electical Steel/Silicon Steel

    Electrical steel mainly consists of grain-oriented electrical steel and non-oriented electrical steel. Grain-oriented electrical steel widely used in transformer industry. Non-oriented electrical steel widely used in motor industry.

    The grain-oriented silicon steel is a kind of electrical steel with its easy magnetization direction parallel to the rolling direction and a silicon content of around 3%. The grain-oriented silicon steel can be divided into two major categories including common grain-oriented silicon steel and high magnetic induction grain-oriented silicon steel. It is mostly applicable to the field of power transmission (such as transformers) and is an important functional metal material in the electrical power, electronic and military industries.

    Grain-oriented silicon steel has long been known as the art work of steel, which are technologically sophisticated and technically complicated. Whether to master the technology for producing the grain-oriented silicon steel has always been used as an indicator of a steel manufacturer’s technological capability.




Features of Silicon Steel


Great Electromagnetic Performance
The silicon steel comes with low iron loss and high magnetic
 induction, especially HiB steel which has lower iron loss and
higher magnetic induction.

Good Shape
The material is often made in strips. Slight longitudinal and transverse thickness difference ensures a high lamination factor.
Insulating Coating
Uniform color, excellent insulative, high adhesion strength, high heat resistance, excellent processability, and superior corrosion resistance. Our silicon steel sheet is available in multiple insulating coating options, which have been reaching and RoHS certified that harmful matter content complies with domestic and overseas regulations on environmental protection.
Excellent Processability
Accessible to die-cut, with high dimensional accuracy.
Surface Quality
Our silicon steel features a smooth surface, without defects such as rust, rolling marks, holes, cold-lap,folds, bubbles, etc


Fields of Applications
Fields of applicationGrain-oriented electrical steelNon-oriented electrical steel
Series GSeries PSeries RSeries ASeries AHSeries ARSeries AT
230~400440~700800~1300230~470600~1000
RotatorsLarge-sized motors







Medium-sized motors






Compressor motors



General motors



Small-sized precision motors



Motors for electric cars





Static deviceHigh-frequency motors






Large-sized transformers






Small-sized power transformers
Transformers for instruments






Reactors and magnetic amplifiers





Power switches








Transformers for welding






Voltage regulators



Magnetic sealers





Electromagnetic devices for accelerators






Material Selection

Grain-oriented electrical steel

VarietiesCommon typeHigh induction typeDomain refinedhigh induction type
Large motors
Large transformers
Medium and small transformers
Distributing transformers
Voltage regulator
Reactor and magnetic amplifier
IF transformer

Mutual inductor
TV transformer
Radio transformer
Radio broadcast transformer


Mechanical Property

Mechanical Property
GradeYeild Strength(N/mm2)Ultra-TensionStrength(N/mm2)Ductility(%)Hardness(HV1
M35W23043056020.0225
M35W25041555020.5220
M35W27040051520.5215
M35W30036048021.5195
M35W36035048023.5190
M35W44027542027.5165
M35W55026541533.5160
M50W25043056019.0230
M50W27041055021.5225
M50W29039554522.5220
M50W31038551024.5210
M50W35035047526.5190
M50W40032046036.0170
M50W47029542535.0160
M50W60028041037.0140
M50W80028540538.5135
M50W1300(D)25036040.0115


Insulating Coating

Insulating Coating
Coating typesM11M21
ComponentChromium containing , semi organic coatingChromium free, semi organic coating
Coating thickness(μm)0.7~1.50.8~5.0
Interlayer resistance(Ω•mm2 /slice)≥100≥100
Adhesive propertyClass A or class BClass A or class B
Punching propertyExcellentExcellent
Antirust propertyExcellentExcellent
Heat resisting propertyResistant annealing at 750 C, N2 protection, for 2hAnnealing resistance in general


Production Process



Inspection Certificate



Q&A

Q: What is silicon steel? What is electric steel?

A: Electric steel is magnetically soft material among functional material, and is most wildly used. Generally speaking, silicon steel refers to electric steel with silicon content between 0.5%~6.5% Si. The general electric steel also includes the part that contains little silicon (Si<0.5%). However, nowadays the 2 concepts are not clearly defined, and can be interchangeable.

Q: Difference between electric steel B50A300 and B50AR300

A: B50A300 is whole processed product. It can be put into use after being purchased or annealing (reducing the loss through stress relief and construction perfection). But B50AR300 must go through annealing before use.


Q: Difference between whole processed silicon steel and semi- processed silicon steel

A: The target of whole processed non-oriented silicon steel annealing is to achieve targeted magnetic property (guarantee value), with the consideration of mechanical property required by stamping and the surface coating. The target of semi-processed product annealing is to achieve the mechanical property required by stamping. The manufactured magnetic property is so poor that the user has to do annealing and bluing to the magnet core so as to achieve the required magnetic property and surface insulation. There can be coating on the semi-processed non-oriented electric steel (applied in Japan market) or no coating (applied in American market, CRML).

Q: What is magnetic field?

A: The space field for the acting force between the two magnetic poles is described as magnetic field strength H, the unit is A/m (Ampere/meter). It is the driving primary field produced by external input electric current after the electric steel is made into motor.
